When it comes to pressure washing, selecting the correct nozzle can mean the difference between a sparkling clean surface and costly damage to your property. A pressure washer nozzle chart serves as your roadmap to understanding the intricate world of spray patterns, color codes, and orifice sizes that determine how effectively your pressure washer performs. This comprehensive reference will transform you from a novice operator into a knowledgeable professional who understands every aspect of nozzle selection and application.
The importance of understanding your pressure washer nozzle chart cannot be overstated. Each nozzle in your toolkit represents a different approach to cleaning, with specific spray patterns designed for particular surfaces and cleaning challenges. Whether you’re tackling stubborn concrete stains, delicate wooden decking, or everyday vehicle maintenance, the right nozzle selection based on proper chart interpretation will ensure optimal results while protecting your surfaces from damage.

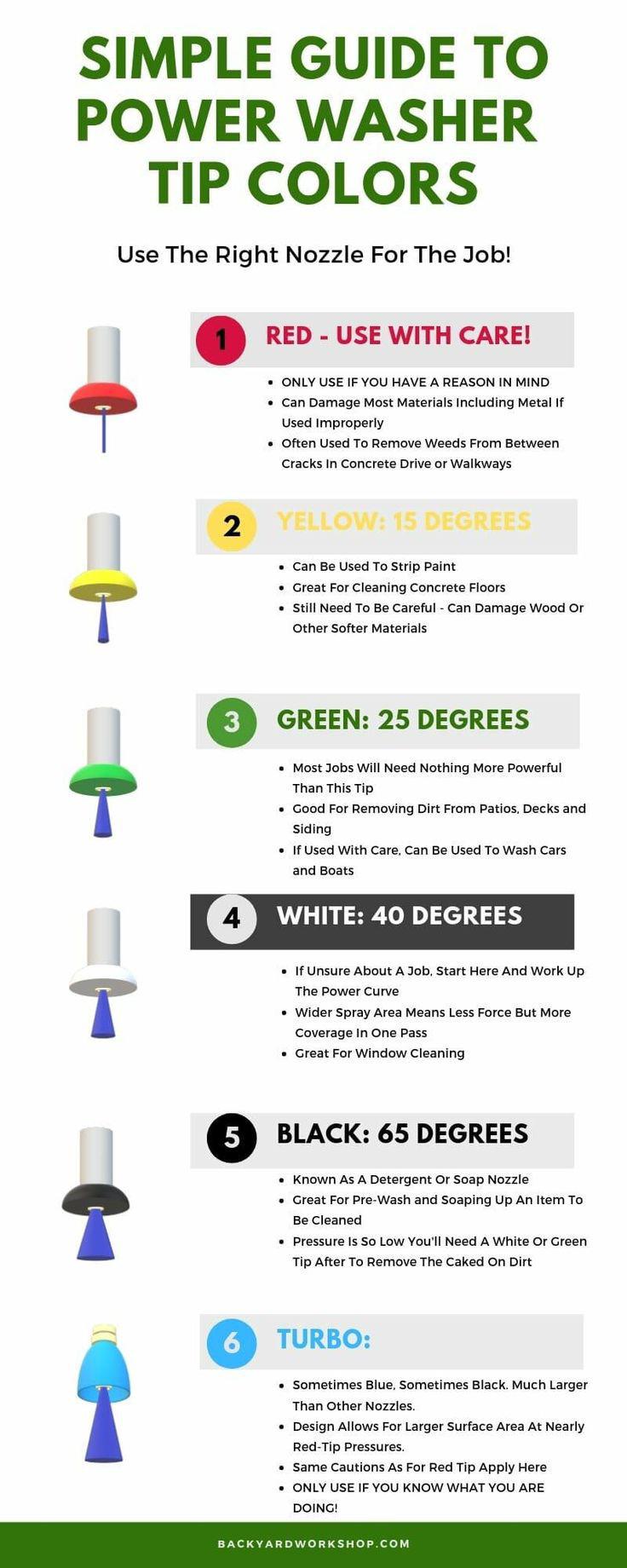

Understanding Pressure Washer Nozzle Color Codes
The color-coding system used in pressure washer nozzles follows a standardized approach that makes identification quick and intuitive. This pressure washer nozzle chart color system was developed to prevent confusion and ensure operators could quickly identify the appropriate spray pattern for their cleaning task. The four universal spray patterns for pressure washing are Red, Yellow, Green, along with additional specialized colors for specific applications.
Red Nozzle (0-Degree Spray Pattern) represents the most concentrated and powerful spray pattern available. This nozzle creates a pencil-thin stream of water that delivers maximum pressure at the point of contact. The red nozzle should be used with extreme caution as it can cause significant damage to soft materials and even concrete if held too close to the surface. Professional applications include removing stubborn paint, eliminating deep-set stains on concrete, and cutting through heavy buildup of dirt and grime. The intense pressure makes this nozzle ideal for spot cleaning and targeting specific areas that require maximum cleaning power.
Yellow Nozzle (15-Degree Spray Pattern) provides a slightly wider spray pattern while maintaining substantial cleaning power. This nozzle is perfect for heavy-duty cleaning tasks where you need strong pressure but with slightly more coverage area than the red nozzle. Common applications include cleaning concrete driveways, removing mildew from sidewalks, and preparing surfaces for painting or staining. The 15-degree pattern allows for more efficient cleaning of larger surfaces while still providing enough pressure to handle stubborn dirt and stains.
Green Nozzle (25-Degree Spray Pattern) offers a balanced approach between cleaning power and surface coverage. This versatile nozzle works well for general-purpose cleaning tasks and is considered the workhorse of most pressure washing operations. It’s particularly effective for cleaning brick surfaces, concrete patios, wooden fences, and outdoor furniture. The 25-degree spray pattern provides sufficient pressure to remove most dirt and grime while being gentle enough for more delicate surfaces when used at the appropriate distance.
White or Black Nozzle (40-Degree Spray Pattern) delivers the widest spray pattern among the standard color-coded nozzles. The 40° is the safest and most common pattern. This nozzle can be used on soft and more fragile surfaces like vehicles, wood, screens, and delicate painted surfaces. This nozzle is ideal for washing cars, cleaning vinyl siding, rinsing surfaces after applying detergent, and general maintenance cleaning where surface protection is paramount.
Black Nozzle (Soap/Chemical Application) is specifically designed for applying cleaning solutions, detergents, and chemicals. This nozzle operates on low pressure to ensure proper chemical application without waste or damage. The soap nozzle allows cleaning solutions to dwell on surfaces, breaking down dirt and grime before the final rinse with higher-pressure nozzles.
Spray Pattern Degrees and Their Applications
Understanding spray pattern degrees is crucial for effective pressure washing and proper pressure washer nozzle chart interpretation. The degree measurement refers to the width of the spray pattern as it exits the nozzle, with smaller degrees creating more concentrated streams and higher cleaning pressure. This relationship between spray pattern width and pressure intensity forms the foundation of effective nozzle selection for any cleaning task.
The 0-degree spray pattern creates the most intense pressure by concentrating all the water flow into a narrow stream approximately the width of a pencil lead. This concentration results in maximum impact pressure at the point of contact, making it ideal for cutting through the toughest deposits and stains. However, this intensity comes with significant responsibility, as improper use can etch concrete, strip paint, or damage wood surfaces. Professional operators use 0-degree nozzles for specific applications such as removing graffiti, cutting through thick layers of built-up grime, and spot-treating heavily soiled areas.
Moving to the 15-degree spray pattern, the water spreads into a fan shape that covers more surface area while maintaining substantial cleaning power. This pattern strikes an excellent balance for heavy-duty cleaning where you need both pressure and reasonable coverage. The 15-degree nozzle excels at cleaning large concrete surfaces, removing years of accumulated dirt from outdoor furniture, and preparing surfaces for refinishing projects. The slightly wider pattern allows for more efficient cleaning of larger areas compared to the 0-degree nozzle while still providing enough concentrated pressure for challenging cleaning tasks.
The 25-degree spray pattern represents the sweet spot for most pressure washing applications. This pattern provides excellent versatility, offering sufficient pressure for effective cleaning while spreading the water across a wide enough area to make the work efficient. Professional cleaners often start with a 25-degree nozzle when assessing a cleaning task, then adjust to narrower patterns if more pressure is needed or wider patterns if surface protection is a concern. This nozzle works exceptionally well for cleaning brick and stone surfaces, wooden decks and fences, and general maintenance cleaning of outdoor structures.
The 40-degree spray pattern creates the widest coverage area while providing the gentlest cleaning action. This pattern is essential for maintaining delicate surfaces and for final rinse applications. The wide spray pattern makes it ideal for washing vehicles, where maintaining paint integrity is crucial, and for cleaning windows, screens, and other fragile materials. Many professional detailers rely on the 40-degree nozzle for the bulk of their vehicle washing, using it to remove loose dirt and grime without risking surface damage.
Nozzle Orifice Sizing and PSI/GPM Relationships
The relationship between nozzle orifice size and your pressure washer’s PSI (Pounds per Square Inch) and GPM (Gallons per Minute) ratings forms the technical foundation of effective pressure washing. Choosing a nozzle with too small of an orifice will limit water flow and possibly create an excessive load on the machine. Understanding this relationship through a proper pressure washer nozzle chart ensures optimal performance and prevents equipment damage.
Orifice size calculation follows specific formulas that relate your machine’s capabilities to the proper nozzle selection. Simply locate your pump’s rated pressure on the top of the chart and following down until you are aligned with your pump’s GPM. Aligned with the GPM on the left hand side you will find the properly sized nozzle for your machine. e.g. Pressure washer produces 1,500 PSI @ 2.2 GPM = 3.5 orifice size This mathematical relationship ensures your pressure washer operates within its designed parameters while delivering optimal cleaning performance.
Understanding the consequences of improper orifice sizing helps emphasize why consulting a pressure washer nozzle chart is essential. Using a nozzle with an orifice that’s too small restricts water flow, causing the pump to work harder and potentially leading to overheating, premature wear, or catastrophic failure. Conversely, using a nozzle with an orifice that’s too large reduces the pressure output, resulting in poor cleaning performance and inefficient operation.
Pressure calculation factors include not just the basic PSI and GPM ratings but also considerations for altitude, water temperature, and specific cleaning requirements. Professional operators often maintain multiple nozzle sets with different orifice sizes to accommodate varying conditions and cleaning challenges. For example, cleaning at higher altitudes may require slight adjustments to orifice size to maintain optimal pressure, while cold weather operations might benefit from marginally larger orifices to accommodate the increased viscosity of cold water.
The relationship between orifice size and cleaning efficiency extends beyond simple pressure calculations. Each user’s necessary orifice size depends on the machine’s PSI and GPM. We have a handy Nozzle Sizing and Orifice Calculator on our website where you can enter the PSI and GPM, and the correct sizing will populate. Modern technology has made these calculations more accessible, but understanding the underlying principles helps operators make informed decisions when charts or calculators aren’t immediately available.
Comprehensive Pressure Washer Nozzle Chart Reference Table
| Nozzle Color | Spray Angle | Pressure Level | Best Applications | Surface Compatibility | Safety Considerations |
|---|---|---|---|---|---|
| Red | 0° | Maximum | Heavy stain removal, paint stripping, cutting | Concrete only (from distance) | High danger – eye protection required |
| Yellow | 15° | High | Concrete cleaning, mildew removal, surface prep | Hard surfaces, concrete, brick | Moderate danger – maintain safe distance |
| Green | 25° | Medium-High | General cleaning, deck washing, fence cleaning | Wood, brick, concrete, stone | Low-medium danger – versatile use |
| White/Black | 40° | Medium | Vehicle washing, siding, delicate surfaces | Cars, vinyl, painted surfaces | Low danger – safest for most surfaces |
| Black (Soap) | 65° | Low | Chemical application, soap dispensing | All surfaces (chemical dependent) | Chemical hazards – read MSDS sheets |
Specialty Nozzle Types and Applications
Beyond the standard color-coded nozzles, specialty attachments expand your pressure washing capabilities significantly. Turbo nozzles combine the pressure intensity of a 0-degree spray with the coverage area of a wider pattern by rotating the spray in a circular pattern. The Hotsy Turbo Nozzle, a spinning nozzle with a zero-degree spray pattern, is a great option for heavy-duty cleaning jobs. These rotating nozzles can reduce cleaning time by up to 40% compared to standard fixed-pattern nozzles while maintaining excellent cleaning power.
Adjustable nozzles offer variable spray patterns in a single unit, allowing operators to change spray angles without stopping to switch nozzles. These versatile tools are particularly valuable for professional operators who encounter varying surface types and cleaning requirements throughout their workday. The convenience of pattern adjustment comes with the trade-off of slightly reduced pressure compared to dedicated fixed-pattern nozzles due to the internal mechanisms required for adjustment.
Foam cannons and soap applicators represent specialized low-pressure nozzles designed specifically for chemical application. These attachments ensure proper dilution ratios and provide consistent chemical coverage across large surfaces. Professional auto detailers and exterior cleaning specialists rely on these specialized nozzles to apply pre-treatment chemicals that break down dirt and grime before high-pressure rinsing.
Surface cleaners technically qualify as specialized nozzle systems that incorporate multiple spray points in a rotating configuration. These attachments combine high-pressure cleaning with consistent coverage patterns, making them ideal for large flat surfaces like driveways, parking lots, and warehouse floors. The enclosed design prevents splash-back while providing more even cleaning results than traditional wand-mounted nozzles.
Safety Considerations and Best Practices
Operating pressure washers with proper nozzle selection requires strict adherence to safety protocols that protect both the operator and surrounding surfaces. The concentrated power delivered through these nozzles can cause serious injury or property damage when used improperly. Understanding safety considerations as part of your pressure washer nozzle chart knowledge is essential for responsible operation.
Personal protective equipment requirements vary based on nozzle type and cleaning application. Eye protection is mandatory when using any pressure washer nozzle, but becomes even more critical with narrow spray patterns that can cause debris to fly at high velocities. Hearing protection is recommended for extended operation periods, as pressure washers generate significant noise levels that can damage hearing over time. Appropriate footwear with slip-resistant soles helps prevent accidents on wet surfaces created during pressure washing operations.
Surface testing protocols should be followed regardless of your experience level or confidence in nozzle selection. Always test your chosen nozzle on an inconspicuous area first, starting from a greater distance and gradually moving closer until you achieve the desired cleaning effect. This approach helps prevent damage while allowing you to fine-tune your technique for optimal results. Professional operators often use a systematic approach, beginning with wider spray patterns and lower pressures before progressing to more aggressive settings if needed.
Environmental considerations include protecting nearby plants, vehicles, and structures from overspray and chemical exposure. Wind direction and intensity can significantly affect spray patterns and chemical drift, making weather assessment a crucial part of pre-operational planning. Proper containment and collection of wastewater may be required in certain locations to prevent environmental contamination, particularly when using chemical cleaners or cleaning surfaces contaminated with oils or other hazardous materials.
The importance of maintaining safe operating distances cannot be overstated when consulting your pressure washer nozzle chart for nozzle selection. Each spray pattern has recommended minimum distances that prevent surface damage while ensuring effective cleaning. These distances vary based on surface material, with delicate surfaces requiring greater standoff distances and more durable materials tolerating closer approach.
Troubleshooting Common Nozzle Issues
Understanding common nozzle problems and their solutions helps maintain optimal pressure washer performance and extends equipment life. Clogged nozzles represent the most frequent issue operators encounter, typically caused by debris in the water supply or mineral deposits from hard water. Regular inspection and cleaning of nozzles prevents performance degradation and ensures consistent spray patterns. Using filtered water and implementing regular maintenance schedules can significantly reduce clogging incidents.
Worn orifices gradually enlarge over time due to the abrasive nature of high-pressure water flow and any particles suspended in the water. This wear changes the pressure and flow characteristics, making the nozzle perform differently than specified in your pressure washer nozzle chart. Professional operators often maintain pressure and flow measurements to detect orifice wear before it significantly impacts cleaning performance. Replacing worn nozzles promptly ensures consistent results and prevents the need to compensate with technique adjustments that may be less efficient or more potentially damaging.
Inconsistent spray patterns can indicate several problems including internal nozzle damage, partial blockages, or wear in the nozzle body itself. Systematic diagnosis involves cleaning the nozzle thoroughly, inspecting for visible damage, and testing spray pattern consistency at various distances. Sometimes, seemingly minor damage to the nozzle tip can create significant spray pattern irregularities that reduce cleaning effectiveness and may create unexpected pressure points that could damage sensitive surfaces.
Pressure variations during operation may result from nozzle issues, pump problems, or system leaks. Proper diagnosis requires systematic evaluation of each component, starting with nozzle inspection and cleaning before moving to more complex system components. Understanding how nozzle condition affects overall system performance helps operators maintain their equipment more effectively and identify when professional service may be required.
Maintenance and Care Instructions
Proper nozzle maintenance extends equipment life and ensures consistent performance that matches your pressure washer nozzle chart specifications. Daily maintenance routines should include rinsing nozzles with clean water after each use, particularly when cleaning solutions or chemicals have been used. This simple practice prevents chemical buildup that can corrode internal components and change spray characteristics over time.
Weekly deep cleaning involves removing nozzles from the equipment and soaking them in appropriate cleaning solutions to dissolve mineral deposits and chemical residues. Using a soft brush to clean internal passages helps maintain proper flow characteristics without damaging precision-machined surfaces. Compressed air can be used to clear stubborn debris, but care must be taken to avoid forcing particles deeper into the nozzle assembly.
Storage considerations include protecting nozzles from freezing temperatures that can crack internal components and cause permanent damage. Proper storage also involves organizing nozzles to prevent damage from contact with other tools and ensuring easy identification when quick nozzle changes are required during operations. Many professional operators use dedicated storage cases that protect individual nozzles while keeping them organized according to their pressure washer nozzle chart system.
Replacement scheduling should be based on usage intensity and performance monitoring rather than arbitrary time intervals. Keeping detailed records of nozzle performance helps identify patterns that indicate when replacement is needed. Professional operators often maintain backup nozzles for critical applications to prevent work interruption when primary nozzles require service or replacement.
For more comprehensive cleaning setups, you may also need to consider your pressure washer water tank capacity and quality, as clean water supply directly impacts nozzle performance and longevity.
Ready to optimize your pressure washing results? Use this pressure washer nozzle chart reference to select the perfect nozzle for your next cleaning project and experience the difference proper nozzle selection makes in achieving professional-quality results.
Frequently Asked Questions About Pressure Washer Nozzle Charts
What does a pressure washer nozzle chart tell me? A pressure washer nozzle chart provides essential information about spray patterns, color codes, orifice sizes, and optimal applications for each nozzle type. It helps you select the correct nozzle based on your pressure washer’s PSI and GPM ratings while ensuring surface safety and cleaning effectiveness.
How do I read the color codes on a pressure washer nozzle chart? Color codes follow a standard system: Red (0°) for maximum pressure, Yellow (15°) for heavy-duty cleaning, Green (25°) for general purpose use, White/Black (40°) for delicate surfaces, and Black (soap) for chemical application. Each color represents a specific spray angle and pressure level.
What happens if I use the wrong nozzle size according to the chart? Using an incorrectly sized nozzle can damage your pressure washer pump, reduce cleaning effectiveness, or cause surface damage. Too small creates excessive back pressure; too large reduces cleaning power and wastes water and energy.
How often should I refer to a pressure washer nozzle chart? Reference your nozzle chart whenever switching between different cleaning tasks, working with new surface materials, or when cleaning results aren’t meeting expectations. Regular consultation ensures optimal performance and prevents costly mistakes.
Can I clean my nozzles if they don’t perform according to the chart specifications? Yes, most performance issues result from clogs or mineral deposits that cleaning can resolve. Soak nozzles in appropriate cleaning solutions and use soft brushes to restore proper spray patterns and pressure characteristics.
