The pressure washer unloader valve stands as one of the most critical yet often misunderstood components in pressure washing equipment. This essential safety mechanism prevents catastrophic damage to your equipment while ensuring consistent performance during cleaning operations. Whether you’re a professional contractor or a homeowner tackling weekend projects, understanding how your pressure washer unloader valve functions can save you hundreds of dollars in repairs and extend your equipment’s lifespan significantly.
Modern pressure washers generate tremendous force, with some commercial units producing over 4,000 PSI of water pressure. Without proper pressure regulation, this immense force could destroy internal components within minutes of operation. The unloader valve serves as the guardian of your pressure washing system, automatically managing pressure buildup and protecting every component from the pump to the spray gun.
What Is a Pressure Washer Unloader Valve and Why It Matters

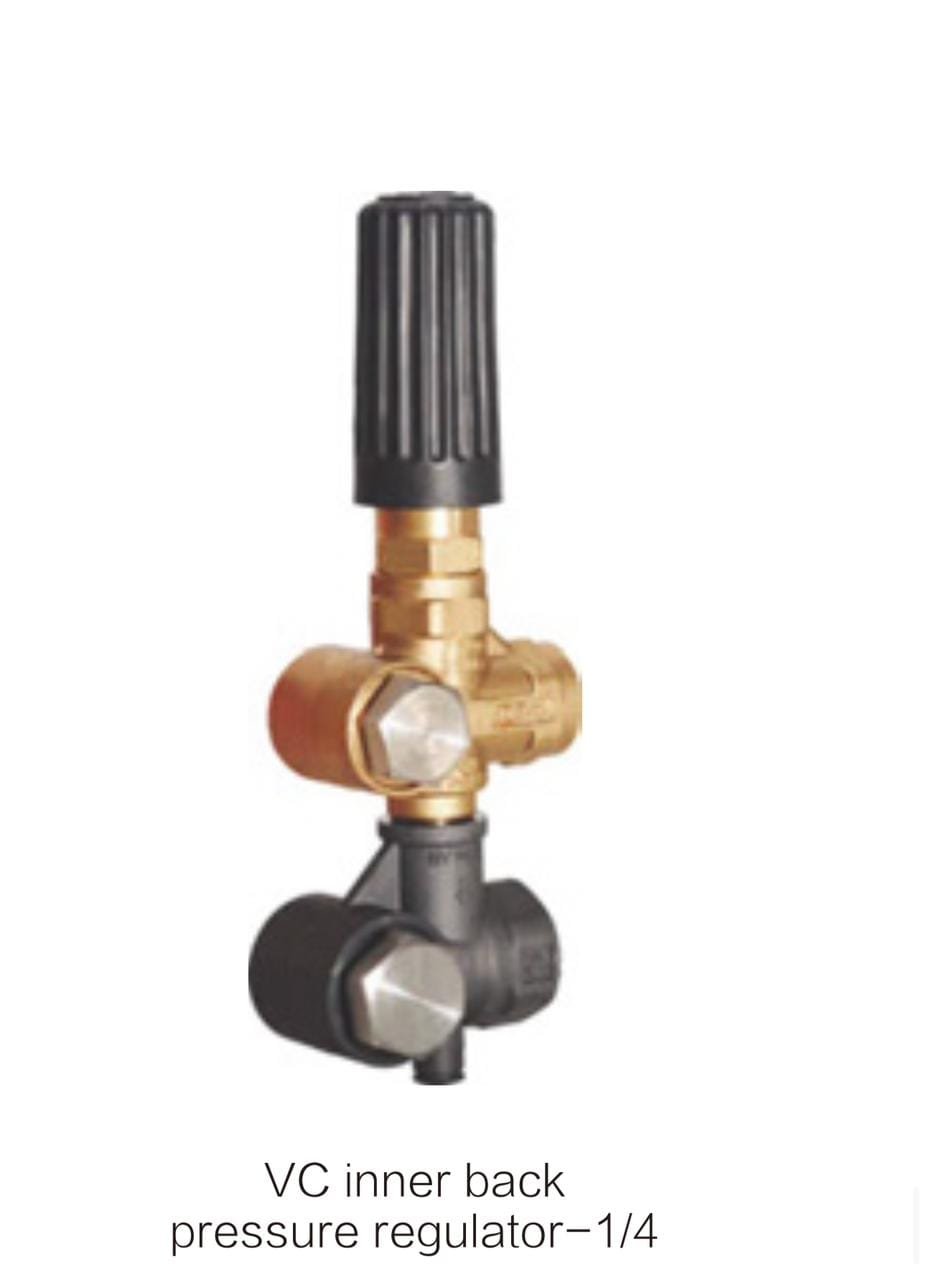

A pressure washer unloader valve is a sophisticated pressure-relief mechanism that automatically redirects water flow when the trigger gun is released. This crucial component prevents pressure buildup that could damage the pump, hoses, and other system components. Factory installed on all pressure washers, this important feature keeps internal pressure from climbing too high while the machine is running. Without one, pressure washers could easily build enough water pressure to damage or destroy it within a minute or less.
The unloader valve operates on a simple yet effective principle: when you release the trigger on your spray gun, the valve automatically opens a bypass circuit that redirects pressurized water back to the pump inlet or to an external drain. This prevents the continuous buildup of pressure that would otherwise stress and potentially destroy critical components.
Understanding the importance of this component becomes clear when you consider the alternative. However, if the pressure washer gun is disengaged, and there is no unloader valve to redirect the pressurized water, the pressure would continue to build. It wouldn’t take long for the pressure to exceed the components’ PSI limitations, and damage the pump, gun, or hoses.
Types of Pressure Washer Unloader Valves: Making the Right Choice
Trapped Pressure Unloader Valves
Pressure actuated, also known as trapped pressure, is the most common unloader valve used on pressure washers. These valves maintain a small amount of pressure in the system even when the trigger is released, creating what’s known as “trapped pressure.” This design offers several advantages for most applications.
The trapped pressure design works by using a spring-loaded mechanism that responds to pressure changes in the system. When you pull the trigger, the valve closes the bypass circuit and directs full pressure to the spray gun. When you release the trigger, the valve opens the bypass but maintains approximately 200-500 PSI in the system, depending on the adjustment.
Benefits of Trapped Pressure Unloader Valves:
- Instant pressure response when trigger is activated
- Reduced wear on pump components due to consistent pressure
- Better performance with variable pressure nozzles
- Simple operation and maintenance requirements
- Cost-effective for most residential and light commercial applications
Flow Actuated Unloader Valves
Flow actuated unloader valves respond to changes in water flow rather than pressure. The smooth transition from low to high pressure is beneficial because it doesn’t have a jarring effect on the operator. A disadvantage is that a flow unloader does not allow an operator to downsize high-pressure nozzles. Because it senses flow, reducing the flow at the nozzle causes the unloader to cycle repeatedly.
These valves work by monitoring the flow rate through the system. When flow stops (trigger released), the valve opens the bypass circuit. When flow resumes (trigger pulled), the valve closes the bypass and builds pressure gradually.
Applications for Flow Actuated Valves:
- High-volume cleaning operations requiring consistent flow
- Industrial applications with multiple operators
- Systems with long hose runs where pressure drops are common
- Applications requiring smooth pressure transitions
Compensating Unloader Valves
Compensating unloader valves represent the most sophisticated type of pressure regulation. These valves automatically adjust system pressure based on the restriction at the nozzle, maintaining consistent cleaning power regardless of the spray pattern or nozzle size used.
How Pressure Washer Unloader Valves Function: The Technical Deep Dive
The operation of a pressure washer unloader valve involves several interconnected components working in perfect harmony. The primary elements include a spring-loaded piston, bypass port, pressure sensing chamber, and adjustment mechanism. Understanding these components helps you troubleshoot issues and perform proper maintenance.
When the system starts, the pump begins generating pressure. The unloader valve’s sensing chamber monitors this pressure through a small pilot line connected to the pump outlet. As pressure builds, it pushes against the spring-loaded piston inside the valve. The spring tension determines the pressure at which the valve will activate.
During normal operation with the trigger gun engaged, water flows through the system to the spray gun. The unloader valve remains closed, directing all flow and pressure to the cleaning task. The moment you release the trigger, flow stops, and pressure begins building rapidly. The unloader valve senses this pressure increase and opens the bypass circuit, redirecting excess water back to the pump inlet or to a drain.
The adjustment mechanism allows you to fine-tune the pressure at which the valve activates. The gauge is used to make sure the trapped pressure while in bypass does not exceed the recommended limit of 200–500 psi above working pressure. Neglecting this important adjustment will result in low performance of the pressure washer.
Common Pressure Washer Unloader Valve Problems and Solutions
Low Pressure Output Issues
One of the most common symptoms of a faulty unloader valve is a lack of pressure from the spray wand when the trigger is pulled. This frustrating problem can stem from several causes related to the unloader valve system.
Causes of Low Pressure:
- Incorrect spring tension allowing too much bypass flow
- Worn valve seats preventing proper sealing
- Debris blocking the pressure sensing port
- Damaged O-rings causing internal leakage
- Improper adjustment after maintenance or replacement
Solutions for Low Pressure:
- Check and adjust spring tension using a pressure gauge
- Inspect valve seats for wear or damage
- Clean all ports and passages thoroughly
- Replace worn O-rings and seals
- Verify proper installation and connections
Pressure Cycling Problems
Pressure cycling occurs when the unloader valve rapidly opens and closes, causing pressure to fluctuate wildly. This problem not only reduces cleaning effectiveness but can also damage system components over time.
Common Cycling Causes:
- Partially clogged nozzles creating irregular flow patterns
- Air in the system causing pressure fluctuations
- Worn valve components preventing stable operation
- Incorrect valve adjustment for the specific application
- Pump problems affecting consistent flow delivery
Valve Sticking Issues
If it is not easy to move, it is probably dirty and the likely cause of your problems. You will want to clean it out very thoroughly. There is also a small port on the side of the loader valve that can get caked with dirt or other debris.
Sticking valves represent one of the most common maintenance issues, especially in equipment used infrequently or in dusty environments. The valve components can become gummed up with debris, preventing smooth operation.
Maintenance and Troubleshooting Your Pressure Washer Unloader Valve
Regular Maintenance Schedule
Proper maintenance of your pressure washer unloader valve ensures reliable operation and extends equipment life. Establish a regular maintenance schedule based on usage frequency and operating conditions.
Weekly Maintenance (Heavy Use):
- Visual inspection of all connections and fittings
- Check for leaks around the valve body
- Verify proper pressure readings during operation
- Clean external surfaces to prevent debris buildup
Monthly Maintenance:
- Remove and clean the valve assembly
- Inspect O-rings and seals for wear or damage
- Check spring tension and adjust if necessary
- Lubricate moving parts with appropriate lubricants
- Test pressure settings with a calibrated gauge
Seasonal Maintenance:
- Complete disassembly and thorough cleaning
- Replace worn components before they fail
- Calibrate pressure settings to manufacturer specifications
- Document maintenance activities for warranty purposes
Step-by-Step Cleaning Process
Cleaning your pressure washer unloader valve requires careful attention to detail and proper tools. Follow this comprehensive process to ensure thorough cleaning without damaging delicate components.
Required Tools and Materials:
- Screwdrivers (flathead and Phillips)
- Needle-nose pliers for small components
- Compressed air or air compressor
- Clean rags and lint-free cloths
- Appropriate cleaning solvents
- Replacement O-rings and seals
- Torque wrench for reassembly
Cleaning Steps:
- Disconnect power and relieve all system pressure
- Remove the unloader valve from the pump assembly
- Disassemble the valve carefully, noting component positions
- Clean all metal parts with appropriate solvents
- Inspect components for wear or damage
- Replace worn parts as necessary
- Reassemble with proper torque specifications
- Test operation before returning to service
Selecting the Right Pressure Washer Unloader Valve for Your Needs
Pressure Rating Considerations
Choosing the correct pressure washer unloader valve requires careful consideration of your system’s operating pressure and flow requirements. The valve must be rated for at least 125% of your system’s maximum operating pressure to provide adequate safety margin.
Pressure Rating Guidelines:
- Residential units (1,500-2,500 PSI): Standard trapped pressure valves
- Light commercial (2,500-3,500 PSI): Heavy-duty trapped pressure or flow actuated
- Industrial applications (3,500+ PSI): Compensating or high-pressure flow actuated
- Specialty applications: Custom valves designed for specific requirements
Flow Rate Matching
The unloader valve must handle your pump’s maximum flow rate without restriction. Undersized valves create back pressure that reduces system efficiency and accelerates wear on pump components.
Flow Rate Considerations:
- Gallons per minute (GPM) rating must exceed pump capacity
- Port sizes must match system plumbing
- Bypass capacity should handle full pump flow
- Temperature ratings for hot water applications
Professional Installation vs. DIY Replacement
When to Call a Professional
Watch for signs that you need professional help. These signs include persistent leaks, unusual noises, or a significant drop in pressure despite steeings. These issues often indicate an underlying problem that requires expert evaluation.
While many pressure washer maintenance tasks can be performed by equipment owners, certain situations require professional expertise to ensure safe and proper operation.
Professional Service Indicators:
- Persistent performance problems despite troubleshooting
- System pressure exceeding manufacturer specifications
- Unusual noises or vibrations during operation
- Warranty considerations requiring certified service
- Complex commercial systems with multiple components
DIY Installation Guidelines
For those comfortable with mechanical work, replacing a pressure washer unloader valve can be a rewarding DIY project. However, proper preparation and attention to detail are essential for success.
Installation Prerequisites:
- Complete understanding of your specific system
- Proper tools and replacement parts
- Adequate workspace for safe operation
- Pressure gauge for proper adjustment
- Service manual for your equipment
Troubleshooting Common Performance Issues
Pressure Loss Diagnosis
When your pressure washer loses power, the unloader valve is often the culprit. Systematic diagnosis helps identify the root cause and appropriate solution.
Diagnostic Steps:
- Check nozzle condition and clear any blockages
- Verify water supply pressure and flow
- Inspect inlet screen for debris or damage
- Test unloader valve operation and adjustment
- Examine pump condition for internal wear
Erratic Pressure Problems
Pressure Issues: Installing or adjusting the valve incorrectly could lead to pressure issues. Pressure issues result from incorrectly tightened or loosened springs in the unloader valve.
Erratic pressure output frustrates users and indicates system problems requiring immediate attention. The unloader valve adjustment directly affects pressure stability and system performance.
Pressure Stability Factors:
- Spring tension adjustment for proper bypass pressure
- Valve seat condition affecting sealing capability
- Internal component wear causing irregular operation
- System contamination interfering with valve function
- Thermal effects on valve components during operation
Advanced Unloader Valve Technologies
Electronic Pressure Control
Modern pressure washers increasingly incorporate electronic pressure control systems that work in conjunction with traditional unloader valves. These systems provide precise pressure regulation and enhanced user control.
Electronic System Benefits:
- Precise pressure control for delicate surfaces
- Automatic pressure adjustment based on application
- Remote monitoring and diagnostics capability
- Integration with other systems for complete automation
- Reduced operator fatigue through automated operation
Smart Valve Technology
The latest pressure washer unloader valve designs incorporate smart features that enhance performance and reliability. These advanced valves can adapt to changing conditions and provide real-time feedback to operators.
Smart Features:
- Automatic pressure optimization for different nozzles
- Predictive maintenance alerts based on usage data
- Integration with mobile apps for remote monitoring
- Data logging for performance analysis
- Customizable settings for specific applications
Safety Considerations and Best Practices
Operational Safety
Working with high-pressure water systems requires strict adherence to safety protocols. The unloader valve plays a crucial role in system safety, but proper operation and maintenance are essential.
Safety Guidelines:
- Always relieve pressure before performing maintenance
- Use proper personal protective equipment (PPE)
- Never override safety features or bypass valves
- Maintain clear work areas free from hazards
- Follow manufacturer specifications for all adjustments
Maintenance Safety
Improper adjustment will cause high spike pressures, which will damage the unloader valve and other components, which is why only trained service technicians should attempt to repair and service unloader valves.
Maintenance activities require special attention to safety procedures. High-pressure systems store significant energy that can cause serious injury if released unexpectedly.
Maintenance Safety Protocols:
- Lockout/tagout procedures for equipment shutdown
- Pressure relief verification before disassembly
- Proper tool selection for specific tasks
- Component inspection before reassembly
- Pressure testing after maintenance completion
Cost Analysis and Economic Considerations
Replacement vs. Repair Economics
Deciding whether to repair or replace a pressure washer unloader valve involves several economic factors. Understanding these considerations helps make informed decisions that optimize long-term costs.
Cost Factors:
- Initial valve cost versus repair expenses
- Labor costs for professional service
- Downtime expenses during repair periods
- Performance improvements with newer technology
- Warranty coverage for new components
Preventive Maintenance ROI
Regular maintenance of your pressure washer unloader valve provides excellent return on investment through reduced repair costs and extended equipment life.
Maintenance Benefits:
- Reduced unexpected failures and associated costs
- Extended equipment lifespan through proper care
- Improved performance and efficiency
- Maintained warranty coverage through proper service
- Enhanced safety through reliable operation
Compatibility and Upgrade Considerations
System Integration
When upgrading or replacing a pressure washer unloader valve, compatibility with existing system components is crucial. Mismatched components can cause performance problems and premature failure.
Compatibility Factors:
- Pressure ratings must match system requirements
- Flow capacities should exceed pump output
- Connection types must fit existing plumbing
- Mounting configurations for proper installation
- Control interfaces for system integration
Performance Upgrades
Upgrading to a higher-performance unloader valve can significantly improve your pressure washer’s capabilities and reliability. Consider these upgrade opportunities during maintenance or replacement.
Upgrade Benefits:
- Improved pressure regulation for better cleaning results
- Enhanced durability through superior materials
- Advanced features for easier operation
- Better efficiency reducing operating costs
- Future-proofing for evolving requirements
