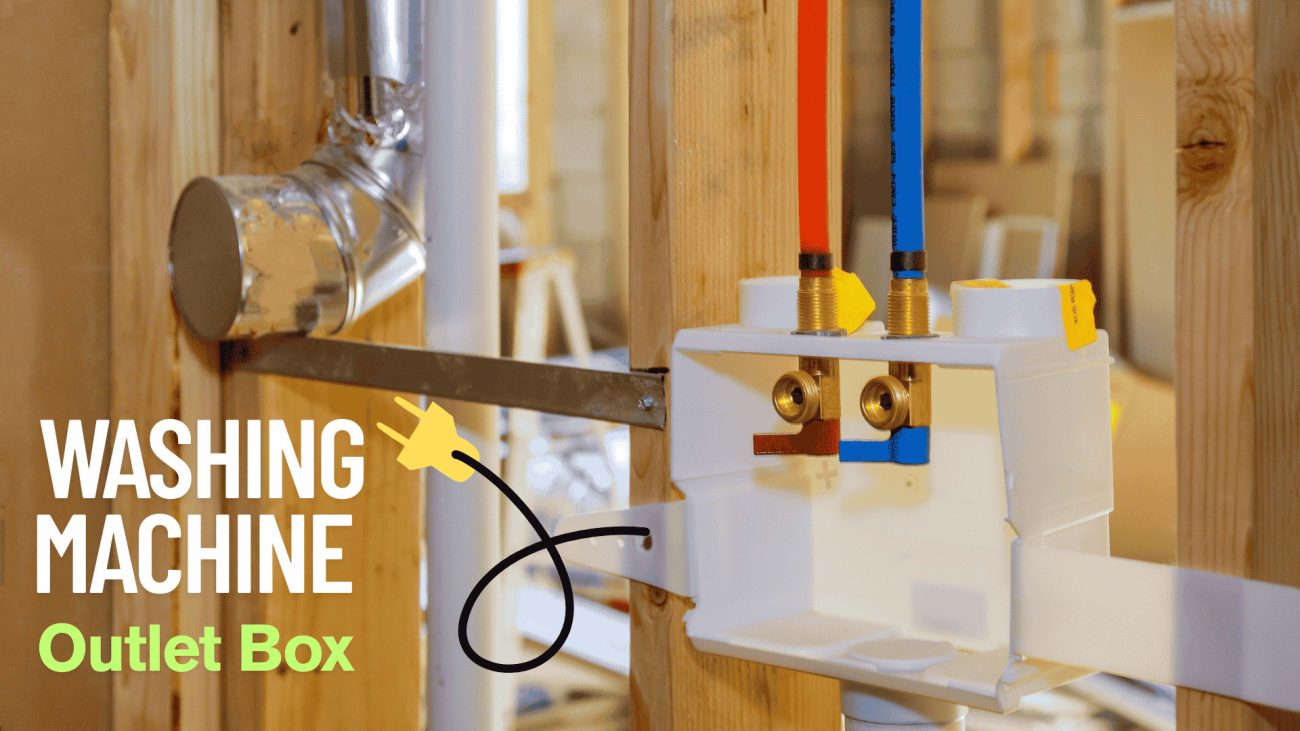

What is a Washing Machine Outlet Box and Why Do You Need One?
A washing machine outlet box serves as the central connection point for your washing machine’s water supply lines, drain hose, and electrical connections. This specialized plumbing fixture mounts directly into your wall and provides a clean, organized solution for all the necessary connections your washing machine requires to function properly.
The washing machine outlet box has become an essential component in modern laundry room installations because it eliminates the need for multiple separate connections scattered around your laundry area. Instead of having water valves protruding from walls, drain pipes extending awkwardly, and electrical outlets placed haphazardly, the outlet box consolidates everything into one neat, professional-looking unit.
Most building codes now require proper washing machine outlet boxes in new construction and major renovations because they provide better water damage protection, easier maintenance access, and improved safety standards. The box typically includes hot and cold water shut-off valves, a drain connection for the washing machine’s discharge hose, and often incorporates electrical outlets for the appliance.
Key Components of a Standard Washing Machine Outlet Box
- Hot and cold water supply valves with quarter-turn shut-off capability
- Drain connection sized appropriately for washing machine discharge
- Electrical outlet (GFCI protected) for washing machine power
- Mounting bracket for secure wall installation
- Access panel for maintenance and repairs
Types of Washing Machine Outlet Boxes Available
Recessed Wall-Mount Outlet Boxes

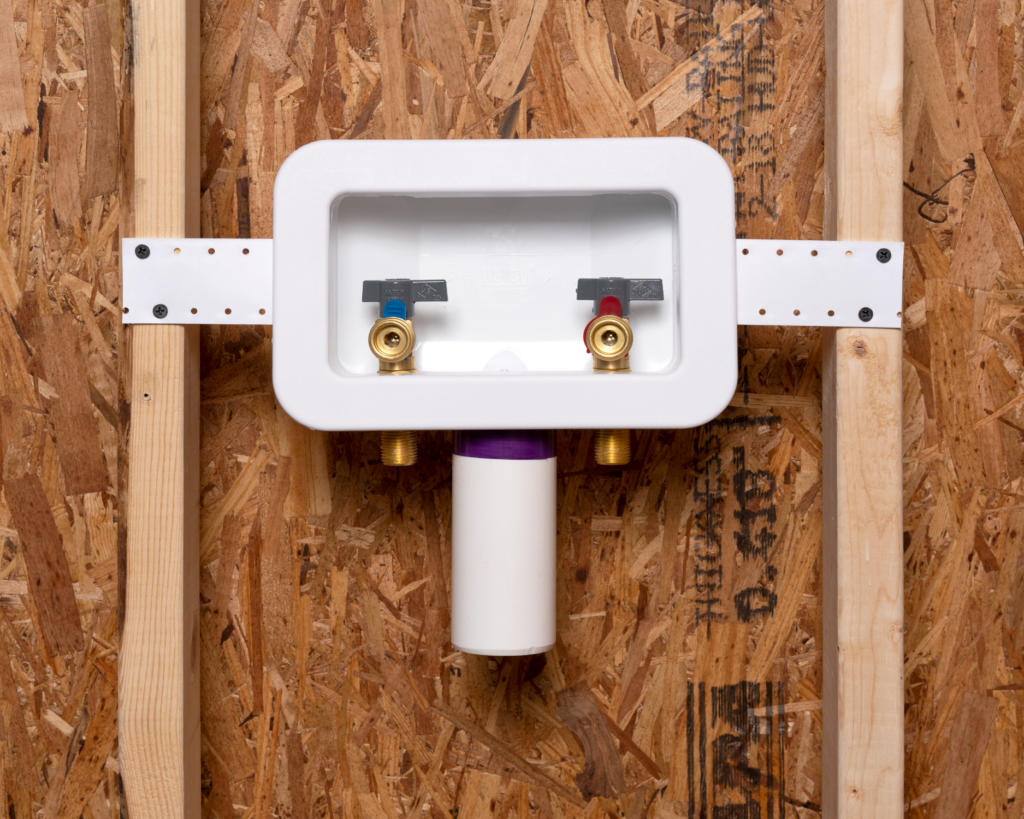

Recessed washing machine outlet boxes represent the most popular choice for modern installations because they sit flush with the wall surface, creating a clean, finished appearance. These units require cutting an opening in the wall between studs and typically measure 14 inches wide by 12 inches tall, though sizes can vary by manufacturer.
The recessed design allows your washing machine to sit closer to the wall, maximizing floor space in smaller laundry rooms. Installation requires access to the wall cavity for plumbing and electrical connections, making them ideal for new construction or major renovations where walls are open.
Popular brands like Oatey, Sioux Chief, and Watts manufacture high-quality recessed washing machine outlet boxes with features like:
- Brass or plastic water valves for durability
- Integrated electrical box for GFCI outlet installation
- Adjustable depth to accommodate different wall thicknesses
- Removable access panels for easy maintenance
Surface-Mount Outlet Boxes
Surface-mount washing machine outlet boxes attach directly to the finished wall surface, making them perfect for retrofit installations where opening walls isn’t practical or desired. These units typically project 3-4 inches from the wall but offer easier installation since they don’t require wall cavity access.
These boxes work well in basement laundry rooms, utility areas, or anywhere you’re adding washing machine connections to an existing space. The surface-mount design allows you to run plumbing and electrical connections along the wall surface or through conduit, then conceal them behind the outlet box housing.
Compact and Space-Saving Designs
Manufacturers now offer compact washing machine outlet boxes designed specifically for tight spaces, apartment installations, and stackable washer/dryer configurations. These units maintain all necessary connections while reducing the overall footprint by up to 30% compared to standard boxes.
Compact designs often feature:
- Vertical orientation to save horizontal space
- Integrated shut-off valves that don’t protrude as far from the wall
- Streamlined electrical connections with built-in GFCI protection
- Flexible mounting options for various wall configurations
Installation Requirements and Building Codes
National and Local Code Compliance
Washing machine outlet box installation must comply with both national plumbing codes (like the International Plumbing Code) and local building regulations. Most jurisdictions require permits for new installations, especially when electrical work is involved.
Key code requirements typically include:
- Minimum drain size of 2 inches for washing machine discharge
- Proper venting of the drain system to prevent sewer gas infiltration
- GFCI protection for all electrical outlets in laundry areas
- Accessible shut-off valves within 6 feet of the washing machine
- Proper height installation typically 42-48 inches above floor level
The specific requirements can vary significantly by location, so always check with your local building department before beginning installation. Some areas have additional requirements for water hammer arrestors, backflow prevention, or specific valve types.
Electrical Requirements for Washing Machine Outlet Boxes
Most washing machine outlet boxes require a dedicated 20-amp circuit for the electrical components, though standard washing machines typically only need 15 amps. The additional capacity provides safety margin and accommodates high-efficiency models that may have higher electrical demands during certain cycles.
GFCI protection is mandatory in most jurisdictions for washing machine outlets because of the combination of water and electricity in laundry areas. The GFCI outlet should be installed within the outlet box or immediately adjacent to it for easy access and testing.
Electrical installation considerations include:
- Dedicated circuit from the main electrical panel
- 12 AWG copper wire for 20-amp circuits
- Proper grounding of all electrical components
- GFCI outlet rated for the circuit amperage
- Accessible reset button for GFCI testing and reset
Plumbing Specifications and Water Pressure Requirements
The plumbing connections for your washing machine outlet box require careful attention to water pressure, pipe sizing, and drainage requirements. Most washing machines need water pressure between 20-100 PSI to operate properly, with optimal performance around 40-60 PSI.
Hot and cold water supply lines should be ½-inch diameter minimum, though ¾-inch lines provide better flow for high-capacity machines. The supply lines must include individual shut-off valves for each temperature, and many codes now require water hammer arrestors to prevent damage from sudden valve closures.
Drainage requirements include:
- 2-inch minimum drain pipe diameter
- Proper slope of ¼ inch per foot toward the main drain
- Vent connection within 5 feet of the drain inlet
- Standpipe height of 18-30 inches above the drain connection
- Air gap between drain hose and standpipe to prevent backflow
Step-by-Step Installation Process
Planning and Preparation
Before installing your washing machine outlet box, careful planning ensures a successful project and code compliance. Start by determining the exact location based on your washing machine’s position, considering door swing clearance and service access needs.
Location considerations include:
- Distance from main water lines to minimize pressure loss
- Proximity to electrical panel for efficient circuit installation
- Access to main drain line for proper drainage connection
- Wall stud locations for secure mounting
- Clearance requirements for washing machine operation and maintenance
Gather all necessary tools and materials before beginning work. A typical installation requires basic plumbing tools (pipe cutters, wrenches, soldering equipment), electrical tools (wire strippers, voltage tester, drill), and general construction tools (level, measuring tape, drywall saw).
Wall Preparation and Rough-In Work
Recessed washing machine outlet box installation begins with cutting the wall opening between two studs. Most boxes require a 14″ x 12″ opening, but verify dimensions with your specific model before cutting. Use a drywall saw or reciprocating saw to make clean, precise cuts.
The rough-in work involves installing water supply lines, drainage connections, and electrical circuits before mounting the outlet box. Hot and cold water lines should terminate within the wall cavity at the appropriate height, typically 42-45 inches above the finished floor.
Electrical rough-in includes running 12 AWG cable from the electrical panel to the outlet box location. The cable should include a hot wire (black), neutral wire (white), and ground wire (green or bare copper). Install a dedicated 20-amp circuit breaker in the main panel for this circuit.
Drainage Connection Installation
The drainage system for your washing machine outlet box requires connecting to the home’s main drain system with proper venting and slope. The drain connection typically uses a 2-inch PVC pipe that connects to a larger drain line or directly to the main waste stack.
Critical drainage installation steps:
- Locate the main drain line and plan the connection route
- Install the drain pipe with proper slope (¼” per foot minimum)
- Connect to the main drain using appropriate fittings
- Install venting according to local code requirements
- Test the drainage system for leaks and proper flow
The standpipe height is crucial for proper drainage function. Most washing machine outlet boxes require the standpipe to extend 18-30 inches above the drain connection point to provide adequate height for the washing machine’s drain pump.
Final Assembly and Testing
Once all rough-in work is complete, mount the washing machine outlet box in the wall opening using the provided mounting brackets. Most boxes secure with screws driven into adjacent wall studs, ensuring a solid, stable installation.
Connect the water supply lines to the outlet box valves, ensuring proper orientation (hot on left, cold on right when facing the box). Use thread sealant or Teflon tape on all threaded connections to prevent leaks.
Install the electrical components including the GFCI outlet within the outlet box. Connect the hot, neutral, and ground wires according to the outlet manufacturer’s instructions, ensuring all connections are tight and properly secured.
Testing procedures include:
- Water pressure test on both hot and cold lines
- Drainage flow test with multiple gallons of water
- Electrical testing of GFCI function and reset capability
- Visual inspection of all connections for leaks or loose fittings
- Final code inspection if required by local authorities
Troubleshooting Common Issues
Water Pressure Problems
Low water pressure at your washing machine outlet box can significantly impact washing performance and cycle times. Several factors contribute to pressure issues, including undersized supply lines, partially closed valves, mineral buildup in pipes, or problems with the main water supply.
Diagnosing pressure problems:
- Test pressure at the outlet box using a pressure gauge
- Compare pressure between hot and cold lines
- Check main water pressure at other fixtures
- Inspect supply line routing for restrictions or sharp bends
- Examine valve operation for full open position
If pressure reads below 30 PSI at the washing machine outlet box, investigate upstream restrictions. Partially closed main shut-off valves, clogged supply lines, or undersized piping between the main line and outlet box commonly cause pressure reduction.
Drainage and Overflow Issues
Drainage problems with washing machine outlet boxes often manifest as slow drainage, gurgling sounds, or water backing up into the standpipe during wash cycles. These issues typically stem from improper installation, inadequate venting, or blockages in the drain system.
Common drainage problems include:
- Standpipe too short causing overflow during rapid discharge
- Inadequate venting creating vacuum conditions that slow drainage
- Clogged drain lines from lint, soap buildup, or foreign objects
- Improper slope on drain pipes preventing gravity flow
- Undersized drain pipes that can’t handle washing machine flow rates
Regular maintenance helps prevent drainage issues. Monthly inspection of the standpipe for lint accumulation and annual professional drain cleaning keeps the system flowing properly. Installing a lint trap on the washing machine discharge hose captures debris before it enters the drainage system.
Electrical Connection Problems
Washing machine outlet box electrical issues range from simple GFCI trips to more complex wiring problems. The combination of water and electricity in laundry areas makes proper electrical installation and maintenance critical for safety.
Frequent electrical problems:
- GFCI outlet trips repeatedly during washing machine operation
- Insufficient power causing washing machine performance issues
- Loose connections creating intermittent power loss
- Overloaded circuits when multiple appliances share the same circuit
- Corrosion at connections from moisture infiltration
GFCI outlets require monthly testing using the test and reset buttons. If the GFCI won’t reset or trips immediately upon reset, professional electrical service is necessary. Never bypass GFCI protection or use non-GFCI outlets in laundry areas, as this creates serious shock and electrocution hazards.
Maintenance and Care Tips
Regular Inspection Schedule
Proper maintenance of your washing machine outlet box prevents costly repairs and ensures reliable operation. Establish a regular inspection schedule that includes monthly visual checks and quarterly functional testing of all components.
Monthly inspection checklist:
- Visual examination of all connections for leaks or corrosion
- GFCI outlet testing using test and reset buttons
- Water valve operation checking for smooth quarter-turn action
- Drain standpipe inspection for lint or debris accumulation
- Washing machine hose condition looking for cracks or swelling
Quarterly maintenance tasks:
- Water pressure testing at both hot and cold outlets
- Drainage flow testing with bucket of water poured into standpipe
- Electrical connection inspection for tightness and corrosion
- Valve exercise by fully closing and opening each water valve
- Professional inspection scheduling if any issues are discovered
Preventing Water Damage
Water damage from washing machine outlet box failures can cost thousands of dollars and disrupt your home for weeks. Preventive measures significantly reduce the risk of catastrophic failures and catch small problems before they become major issues.
Water damage prevention strategies:
- Install water leak detectors near the outlet box and washing machine
- Replace washing machine hoses every 5 years regardless of condition
- Use braided steel hoses instead of rubber for improved durability
- Install water hammer arrestors to prevent pressure spike damage
- Maintain proper water pressure between 40-60 PSI for optimal performance
Consider installing an automatic water shut-off system that monitors for leaks and closes the main water supply if problems are detected. These systems can prevent thousands of dollars in water damage and provide peace of mind when you’re away from home.
Seasonal Maintenance Requirements
Washing machine outlet boxes in areas with freezing temperatures require special seasonal maintenance to prevent freeze damage. Even boxes in heated areas can experience freezing if installed on exterior walls or in poorly insulated spaces.
Winter preparation includes:
- Insulating exposed piping in crawl spaces or unheated areas
- Sealing air leaks around the outlet box installation
- Checking heat sources to ensure adequate freeze protection
- Emergency shut-off preparation in case of heating system failure
- Professional inspection of vulnerable installations before cold weather
Spring maintenance involves checking for freeze damage, testing all functions after winter inactivity, and preparing the system for increased use during warmer months when washing frequency typically increases.
Cost Considerations and Budgeting
Material Costs for Washing Machine Outlet Boxes
Washing machine outlet box costs vary significantly based on features, materials, and installation complexity. Basic recessed boxes start around $30-50, while premium models with advanced features can cost $150-300.
Typical cost breakdown:
- Basic recessed outlet box: $30-60
- Premium outlet box with brass valves: $80-150
- Surface-mount models: $40-80
- Compact/space-saving designs: $60-120
- Professional-grade commercial units: $150-300
Additional materials include plumbing supplies (pipes, fittings, solvents), electrical components (wire, outlet, breaker), and installation hardware. Budget an additional $50-100 for these materials in a typical installation.
Professional Installation vs. DIY Costs
Professional installation of a washing machine outlet box typically costs $300-800 depending on complexity, local labor rates, and permit requirements. This includes materials, labor, and usually a warranty on the installation work.
DIY installation can reduce costs to $100-200 for materials only, but requires significant plumbing and electrical skills. Consider professional installation if you’re not comfortable with:
- Cutting and connecting drain lines to main waste systems
- Installing electrical circuits and GFCI outlets
- Obtaining permits and scheduling inspections
- Ensuring code compliance with local requirements
The cost difference between DIY and professional installation often justifies hiring professionals, especially considering the potential for costly mistakes and the complexity of ensuring code compliance.
Long-Term Value and Return on Investment
A properly installed washing machine outlet box adds value to your home and provides long-term benefits that justify the initial investment. Real estate professionals report that modern laundry room amenities, including proper outlet boxes, appeal to potential buyers and can influence sale prices.
Long-term benefits include:
- Reduced maintenance costs from proper installation and easy access
- Prevention of water damage through better connections and shutoffs
- Improved home value from modern, code-compliant installations
- Lower insurance risk from properly installed plumbing and electrical
- Enhanced functionality making laundry tasks more convenient
Quality washing machine outlet boxes typically last 15-25 years with proper maintenance, making them a sound long-term investment in your home’s infrastructure and functionality.
For professional installation and maintenance services, consider hiring a qualified washing machine cleaning service to ensure your appliance and connections remain in optimal condition.
Ready to upgrade your laundry room with a professional washing machine outlet box installation? Contact local plumbing professionals for quotes and ensure your installation meets all code requirements for safety and functionality.
Frequently Asked Questions About Washing Machine Outlet Box
What size washing machine outlet box do I need for my laundry room? Standard washing machine outlet boxes measure 14″ x 12″ for recessed installations, though compact models are available for smaller spaces. Choose based on your available wall space and washing machine requirements.
Can I install a washing machine outlet box myself? DIY installation is possible if you have plumbing and electrical experience, but professional installation ensures code compliance and proper function. Most jurisdictions require permits for new washing machine outlet box installations.
How often should I replace my washing machine outlet box? Quality washing machine outlet boxes last 15-25 years with proper maintenance. Replace if you notice valve failures, electrical problems, or when upgrading to accommodate new washing machine requirements.
What’s the difference between recessed and surface-mount washing machine outlet boxes? Recessed washing machine outlet boxes install flush with the wall for a clean appearance, while surface-mount models attach to the wall surface and are easier to install in existing spaces.
Do I need a permit to install a washing machine outlet box? Most areas require permits for new washing machine outlet box installations involving plumbing and electrical work. Check with your local building department for specific requirements in your area.
What causes low water pressure at my washing machine outlet box? Low pressure can result from undersized supply lines, partially closed valves, mineral buildup, or problems with the main water supply. Test pressure at the washing machine outlet box to diagnose the issue.
How do I prevent my washing machine outlet box from freezing? Insulate exposed piping, seal air leaks around the installation, ensure adequate heating, and consider installing freeze protection devices in areas prone to freezing temperatures.
Can I connect any washing machine to a standard outlet box? Most standard washing machine outlet boxes accommodate typical residential washing machines, but high-capacity or commercial units may require specialized connections or upgraded electrical service.
Sources: International Plumbing Code, National Electrical Code, Manufacturer Installation Guides
